Product Description

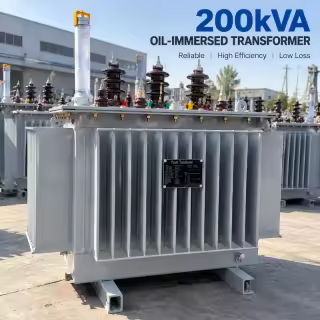

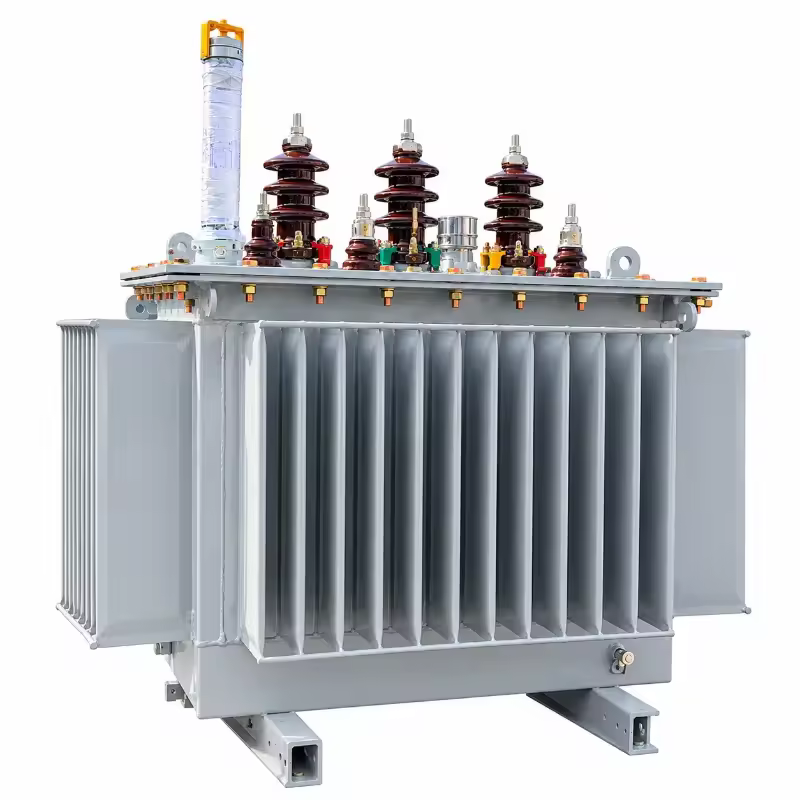

This three-phase oil-immersed distribution transformer is with a new insulation structure to improve short-circuit resistance.
The iron core is made of high-quality cold-rolled silicon steel sheets. The high-voltage winding is made of high-quality oxygen-free copper wire and adopts a multi-layer cylindrical structure. All fasteners are treated with special anti-loosening treatment.
The three-phase oil-immersed distribution transformer has the characteristics of high efficiency and low loss, which can save a lot of electricity consumption and operating costs, and has significant social benefits. It is a high-tech product promoted by country.
Technical Parameters
| Rated Capacity(KVA) | Voltage Group(KV) | Vector Group | No-load Loss(W) | Load Loss (KW) |
No-Load Current(%) |
Impedance Voltage(%) |
Weight (kg) |
Dimensions(mm) (L×B×H) |
Mounting Dimensions(mm) |
| 10 | 11 10 6 / 0.4 |
Dyn11 / Yyn0 |
60 | 400 | 2.5 | 4 | 170 | 560×370×850 | 400/400 |
| 20 | 80 | 520 | 1.9 | 220 | 620×500×870 | 400/400 | |||
| 30 | 100 | 630/600 | 1.5 | 280 | 680×520×880 | 400/400 | |||
| 50 | 130 | 910/870 | 1.3 | 310 | 680×550×910 | 400/400 | |||
| 63 | 150 | 1090/1040 | 1.2 | 360 | 710×560×920 | 400/400 | |||
| 80 | 180 | 1310/1250 | 1.2 | 390 | 730×580×950 | 400/400 | |||
| 100 | 200 | 1580/1500 | 1.1 | 470 | 760×670×1000 | 400/400 | |||
| 125 | 240 | 1890/1800 | 1.1 | 510 | 1000×690×1000 | 400/400 | |||
| 160 | 280 | 2310/2200 | 1 | 630 | 1010×700×1080 | 550/550 | |||
| 200 | 340 | 2730/2600 | 1 | 680 | 1110×790×1100 | 550/550 | |||
| 250 | 400 | 3200/3050 | 0.9 | 790 | 1180×800×1110 | 550/550 | |||
| 315 | 480 | 3830/3650 | 0.9 | 900 | 1230×910×1140 | 550/550 | |||
| 400 | 570 | 4520/4300 | 0.8 | 1070 | 1340×950×1220 | 660/660 | |||
| 500 | 680 | 5410/5150 | 0.8 | 1270 | 1440×1030×1250 | 660/660 | |||
| 630 | 810 | 6200 | 0.6 | 4.5 | 1580 | 1600×1160×1310 | 660/660 | ||
| 800 | 980 | 7500 | 0.6 | 1830 | 1680×1220×1350 | 660/660 | |||
| 1000 | 1150 | 10300 | 0.6 | 2150 | 1700×1220×1440 | 820/820 | |||
| 1250 | 1360 | 12000 | 0.5 | 2800 | 1760×1280×1540 | 820/820 | |||
| 1600 | 1640 | 14500 | 0.5 | 3100 | 1780×1290×1640 | 820/820 | |||
| 2000 | 1940 | 18300 | 0.4 | 5 | 3800 | 1850×1310×1650 | 820/820 | ||
| 2500 | 2290 | 21200 | 0.4 | 4650 | 1910×1880×1750 | 820/820 | |||
| Note: 1. Transformers with other voltages can be provided according to user requirements. 2. The losses above the slash are for Dyn11 or Yzn11. 3. High-voltage tapping range is ±5% or ±2×2.5%; 50/60Hz |
|||||||||
Model Meaning
Related Products

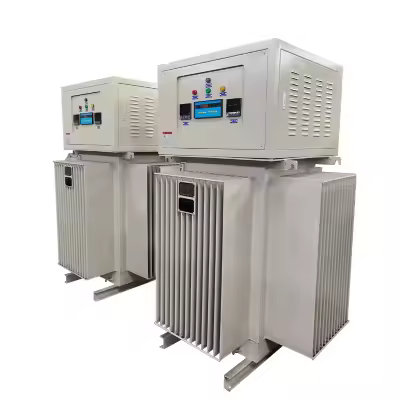

Oil-immersed Stabilizer

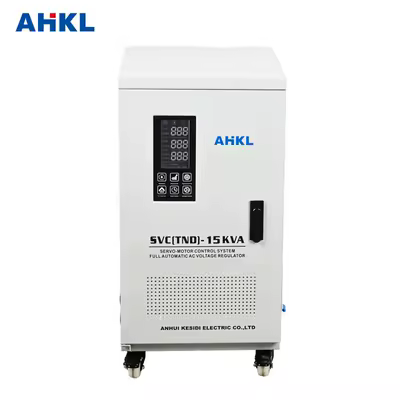

TND 1 Phase AC 60Hz Digital Display Voltage Stabilizer Copper 220V

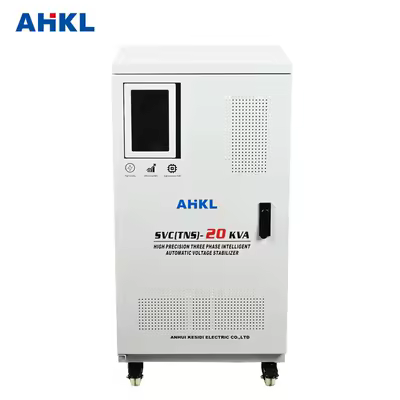

TNS Servo Motor Automatic Voltage Stabilizer Industrial AC 380V Full Copper Custom

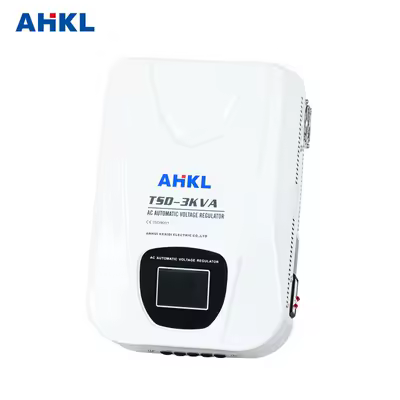

TSD High-Precision Single-Phase 220V AVR Voltage Stabilizers Servo Motor Control Copper
Oil-immersed Voltage Stabilizer

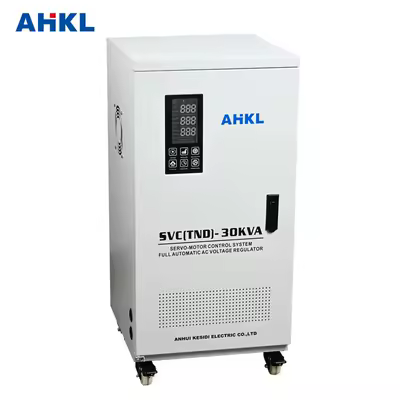

SVC/TND Single-phase Voltage Stabilizer
SVC/TND series single phase high-precision automatic AC voltage stabilizer is composed of contact auto-voltage regulator, servo motor, automatic control circuit, etc. When power grid voltage is unstable or the load changes, the automatic sampling control circuit sends a signal to drive the servo motor to adjust the position of the carbon contact of the auto-voltage regulator, so that the output voltage is adjusted to the rated value and reaches a stable state. This product has the characteristics of undistorted waveform, reliable performance and long-term operation. It has protection functions such as delay, overvoltage and undervoltage. It can be widely used in any place where stable voltage is required, which is able to provide ideal regulated power supply and make sure your electrical equipments operate properly.
GDK Single-Phase to 3-Phase Converter
Industrial-grade converter using IGBT/PWM technology. Delivers stable 380V pure sine wave output with isolation transformer and full safety protections.
220V to 380V Single to 3-Phase Power Supply
Run your equipment without industrial 3-phase power. Stable operation with pure sine wave, isolation transformer, overcurrent/voltage protection, and low energy costs.
