Product Description

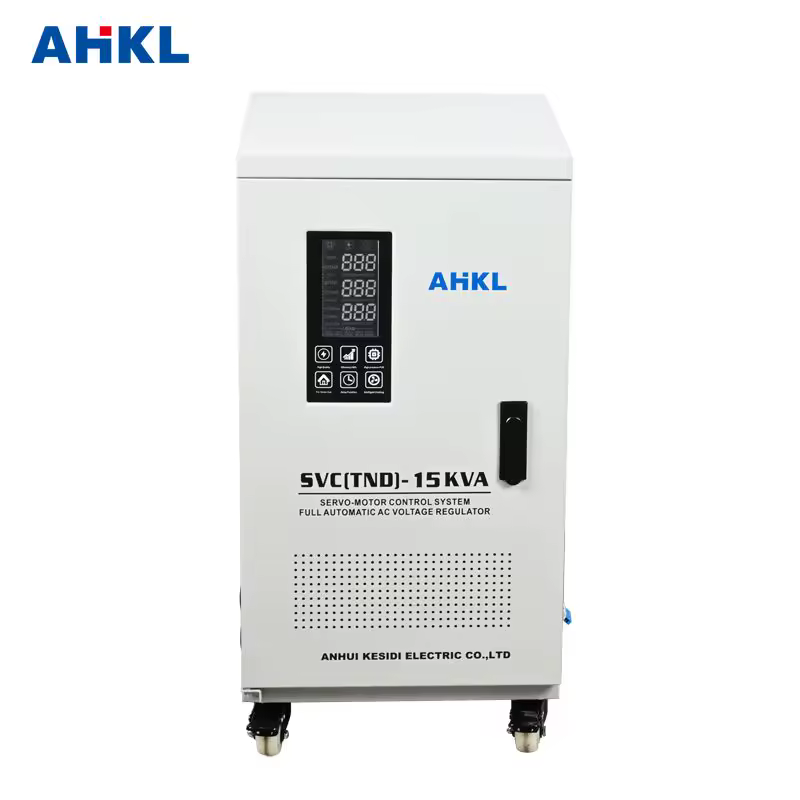

SVC/TND series single phase high-precision automatic AC voltage stabilizer is composed of contact auto-voltage regulator, servo motor, automatic control circuit, etc. When power grid voltage is unstable or the load changes, the automatic sampling control circuit sends a signal to drive the servo motor to adjust the position of the carbon contact of the auto-voltage regulator, so that the output voltage is adjusted to the rated value and reaches a stable state. This product has the characteristics of undistorted waveform, reliable performance and long-term operation. It has protection functions such as delay, overvoltage and undervoltage. It can be widely used in any place where stable voltage is required, which is able to provide ideal regulated power supply and make sure your electrical equipments operate properly.
Applications
This series of AC power stabilizers are suitable for small and medium-sized electromechanical equipment, production lines, construction machinery, microcomputers, textiles, air conditioning, refrigerators, audio systems, televisions, lighting and other household appliances that require voltage stabilization in industries, agriculture, healthcare, broadcasting and television, communication, scientific research, culture, etc.
Technical Parameters
| Single-phase input voltage | 140V-260V |
| Single -phase output voltage | 220V/110V(0.5kVA-5kVA), 220V(10kVA-30kVA) |
| Voltage regulation accuracy | ≤3% |
| Working frequency | 50Hz/60Hz |
| Adjust the time | <1.5s |
| Overvoltage protection | Phase voltage 246V±4V |
| Efficiency | ≥90% |
| Waveform distortion | No additional waveform distortion |
| Load power factor | 0.8 |
| Electric strength | 2500V/1min without breakdown |
| Insulation resistance | ≥2MΩ |
| Ambient temperature | -5°C~ +40°C |
Dimensions and Weight
| Product number | Product size (cm) | Pcs/Outer Packing | Outer Packing(cm) | Gross weight (kg) |
| SVC/TND-0.5KVA | 1 | 17*19*13 | 3.2 | |
| SVC/TND-1KVA | 1 | 20*22*16 | 4 | |
| SVC/TND-1.5KVA | 1 | 20*22*16 | 5.5 | |
| SVC/TND-2KVA | 1 | 26*24*20 | 9 | |
| SVC/TND-3KVA | 1 | 34*31*22 | 13 | |
| SVC/TND-5KVA | 1 | 38*32*25 | 15 | |
| SVC/TND-10KVA | 1 | 42*40*73 | 38 | |
| SVC/TND-15KVA | 1 | 46*42*84 | 55 | |
| SVC/TND-20KVA | 1 | 46*42*84 | 65 | |
| SVC/TND-30KVA | 1 | 49*46*96 | 80 | |
| SVC/TND-40KVA | 1 | 72*53*93 | 125 | |
| SVC/TND-50KVA | 1 | 72*53*93 | 135 | |
| SVC/TND-60KVA | 1 | 72*53*93 | 150 |
